  1. HOME > PRODUCT >> Curtain Display >> OC15-Mantle

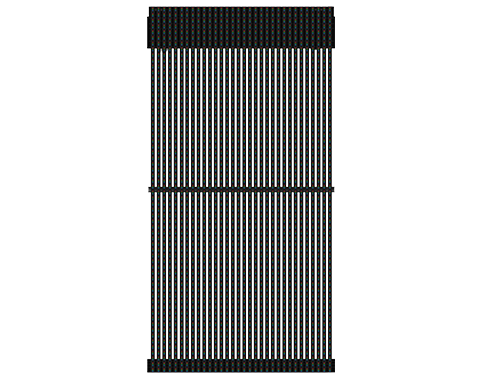

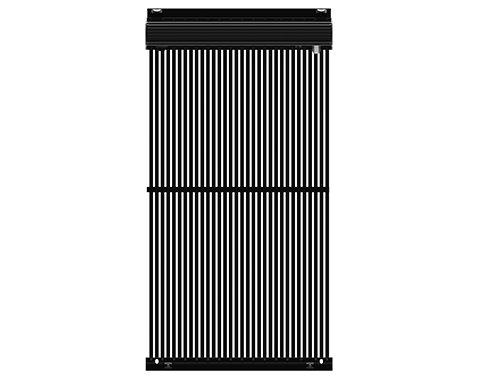

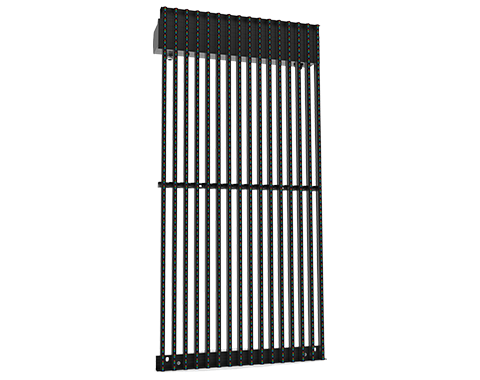

OC15-Mantle

Wearing with the wall,Fit freely; Waterproof/Transparent/High brightness; OC15,OC15-25,OC15-31;
Product Details:


FEATURES:


1. HIGH INGRESS PROTECTION

IP67, waterproof and dustproof

2. HIGH TRANSPARENCY

Unparalleled transparency, the transparent rate could be from 35% to 69%.

3. HIGN BRIGHTNESS

The brightness could be over 7000nits

4. GOOD HEAT DISSIPATION

Heat sink design, speed up the heat conduction

5. INDEPENDENT LED STRIP DESIGN

Curtain LED cabinet composed of single LED Strips, plug in and out independently

6. LIGHT WEIGHT

Only around 14-22kg/sqm, save shipping cost

7. EASY INSTALLATION AND MAINTENANCE

Quick installation and maintenance, reduce labor cost

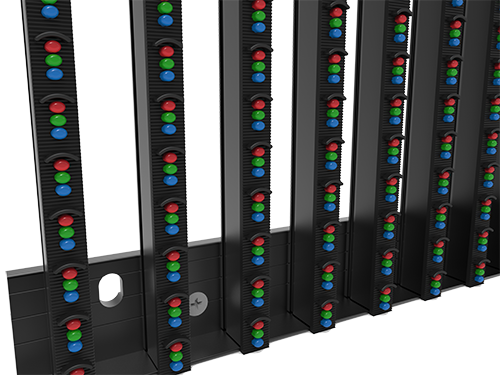

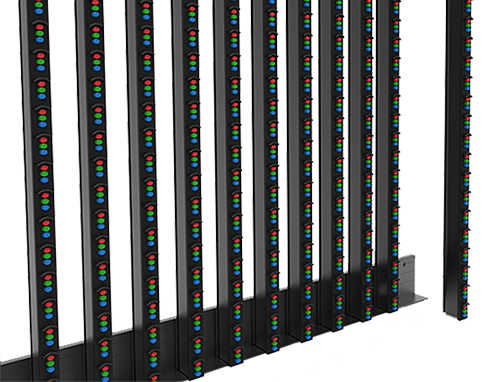

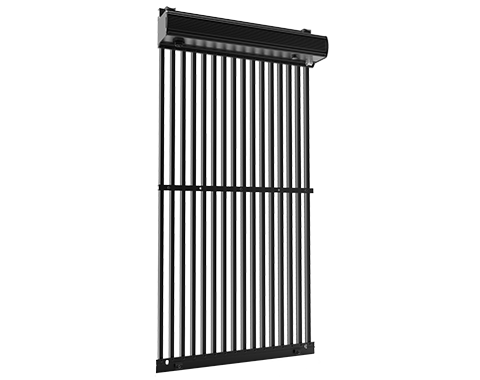

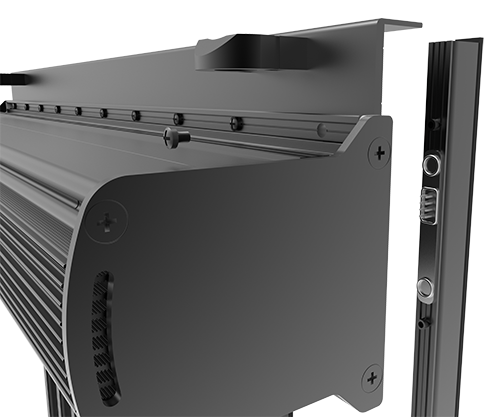

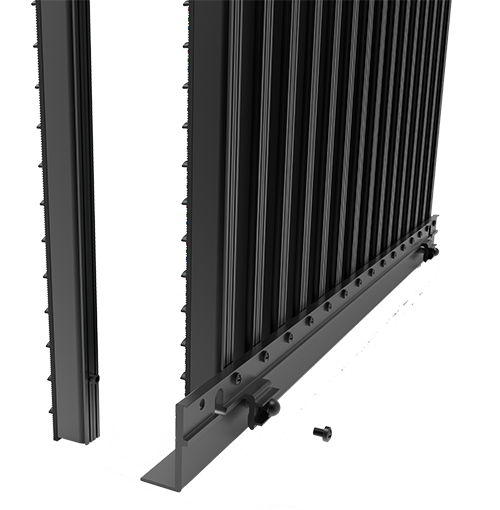

   DETAILS

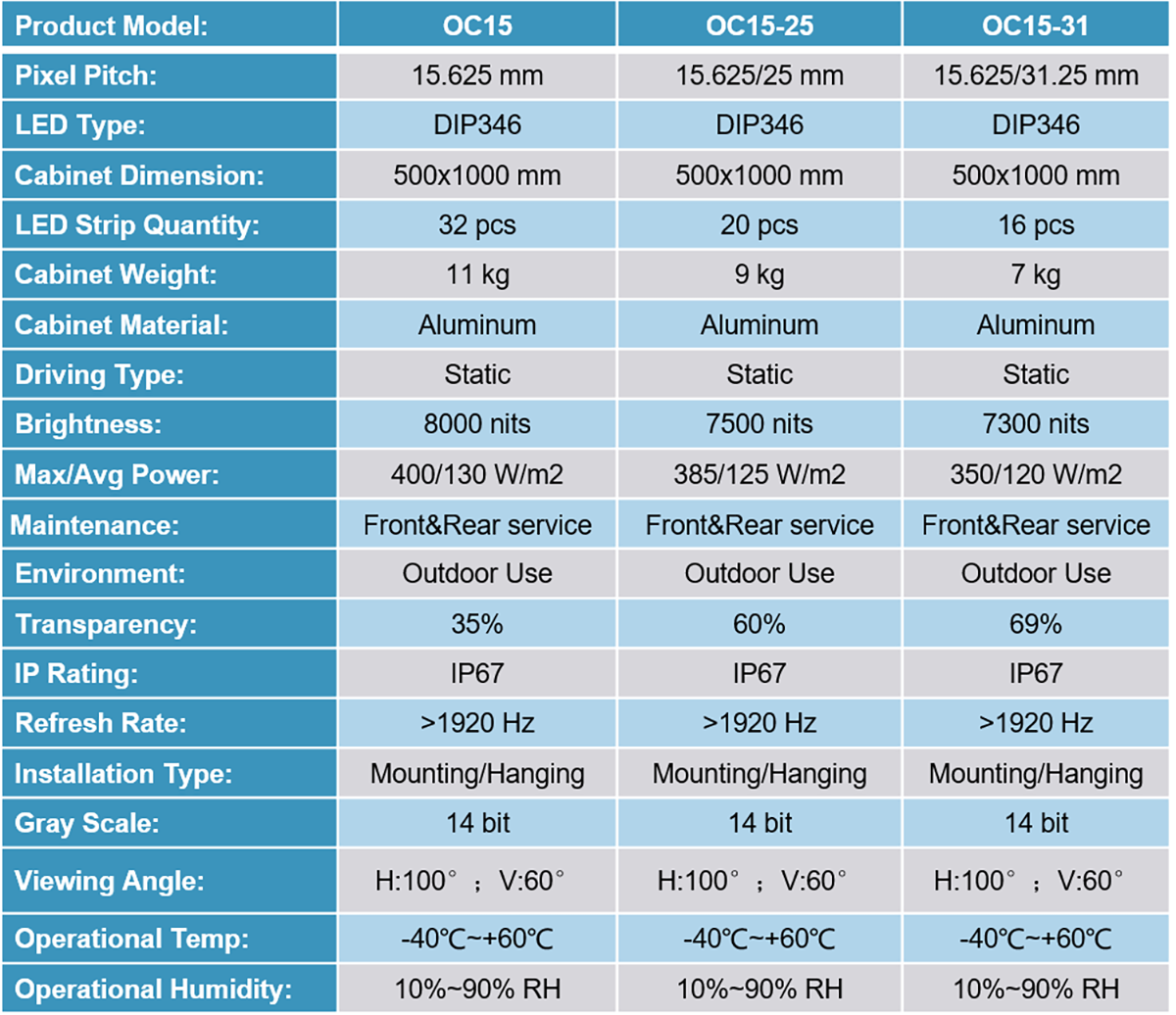

TECHNICAL SPECIFICATIONS

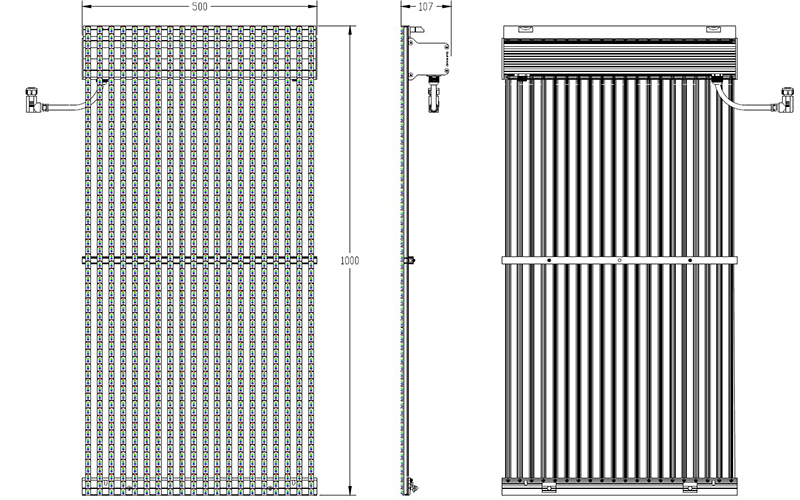

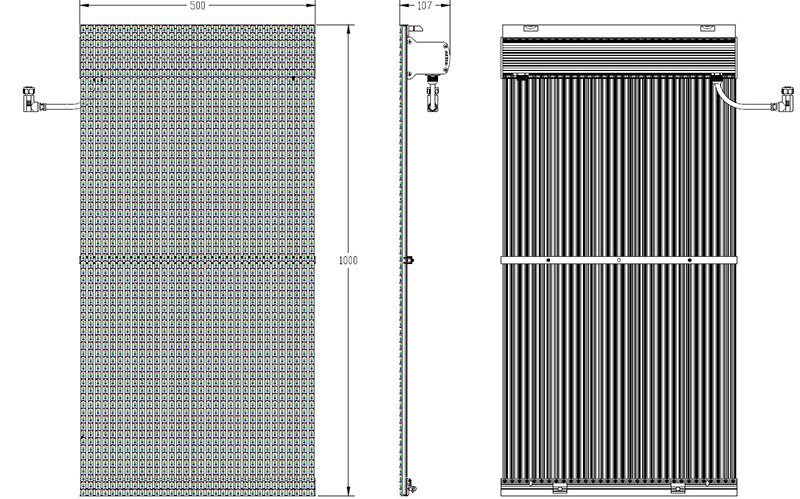

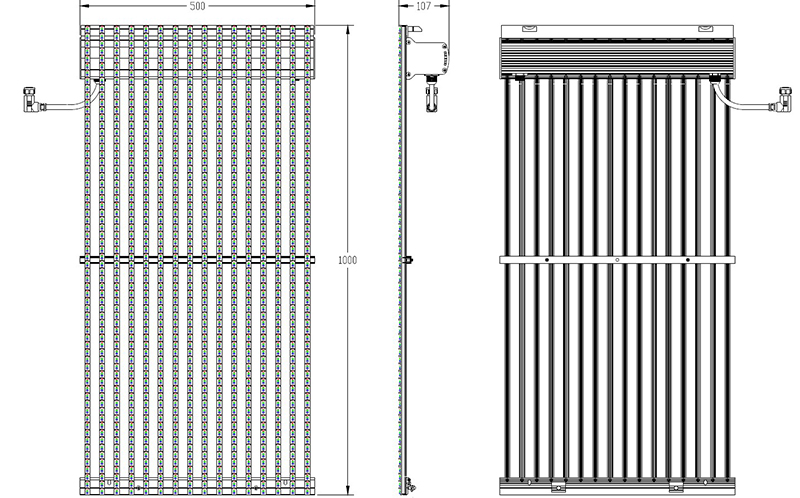

DRAWING



P15.625



P15.625-25



P15.625-31.25

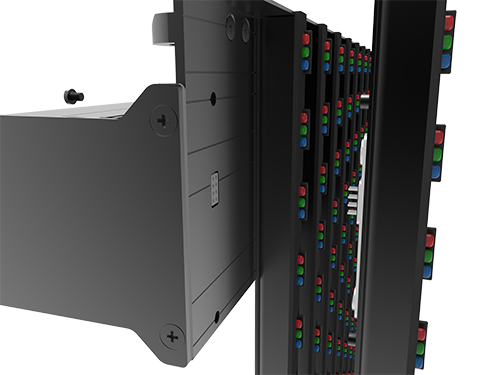

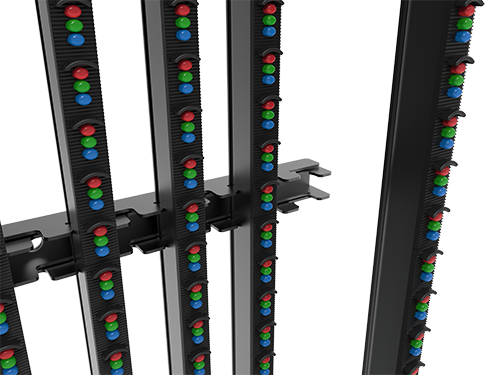

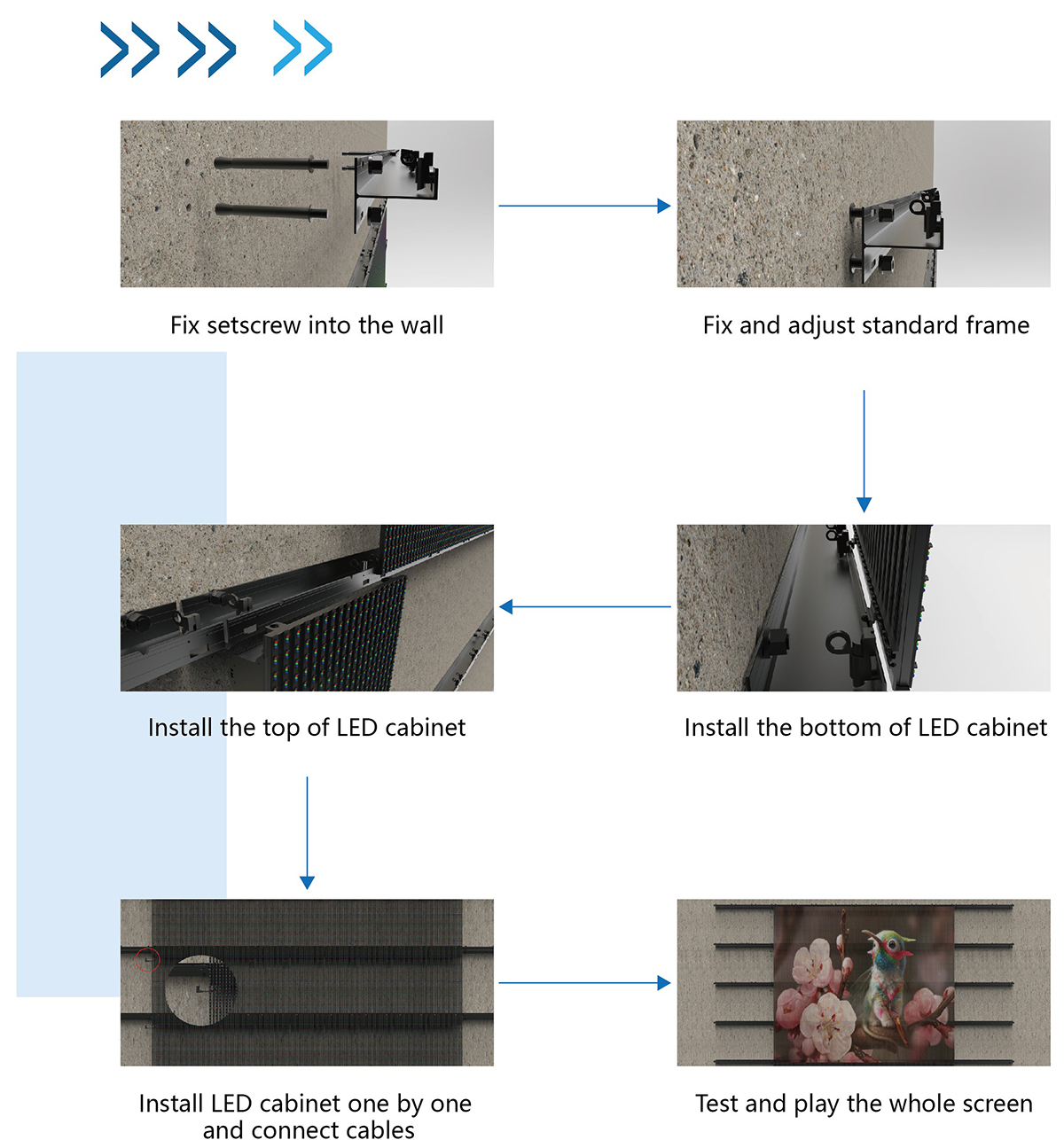

INSTALLATION

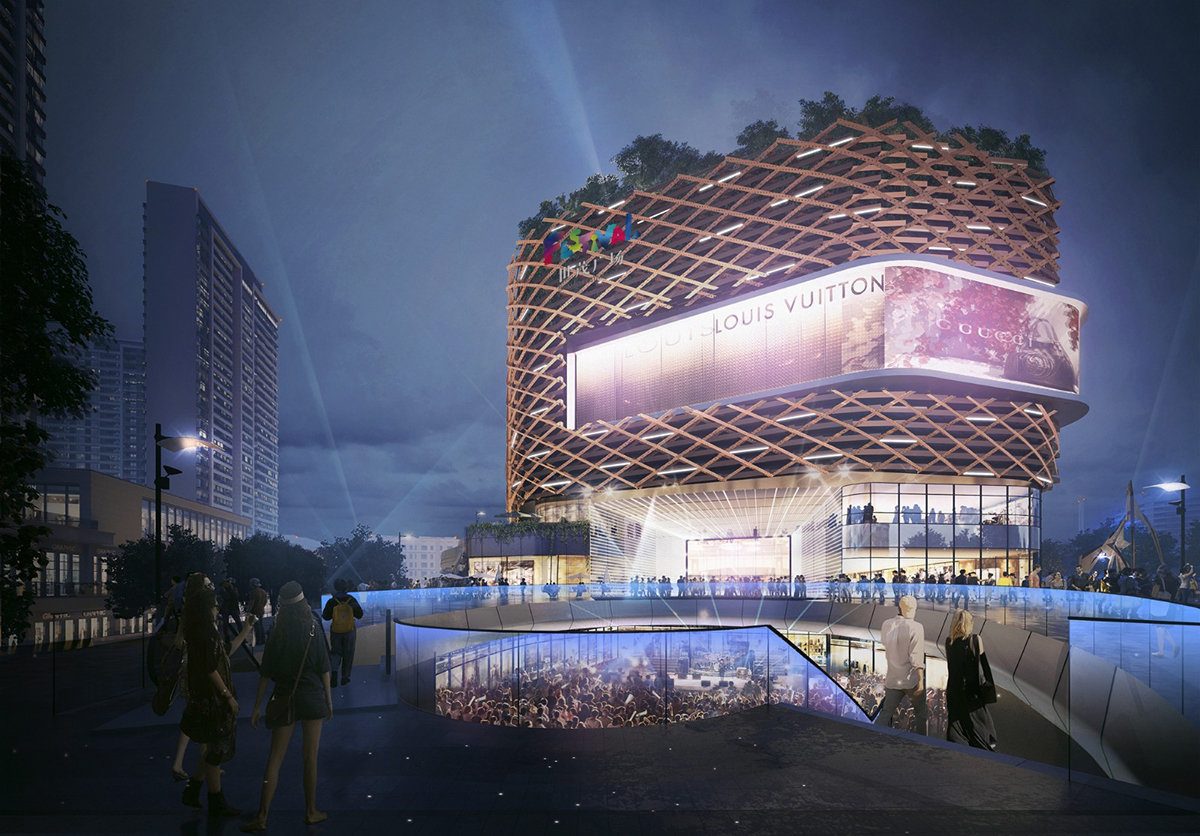

 CASE
